REEL – Quality at the highest level

Certification to ISO 9001

REEL Reinheimer Elektronik GmbH consistently applies a quality management system according to ISO 9001: 2015 for the development, manufacture and distribution of electronic components and antennas for mobile and stationary applications. It forms the basis for continuous improvement processes and ensures full compliance with our product quality standards and customer requirements.

Founded in 2006, REEL-Plantec in Romania is also ISO 9001: 2015 certified and applieds a Quality Management System for the manufacture and assembly of electrical components, devices and cable assemblies.

Certificate ISO 9001: 2015 for REEL (PDF, 307 KB)
Certificate ISO 9001: 2015 for REEL PlanTec (PDF, 310 KB)

Flammability of materials according to ECE-R 118

The ECE-R 118 is a directive which regulates the flammability of materials in passenger vehicles. As our antennas are used in most cases on the vehicle roof, the cable within the vehicle plays a crucial role. However, increasingly, antennas are installed in the vehicle that provide WLAN service for the passengers or ticket machines.

REEL has had new materials certified as ECE-R118.02. This means that the flame resistance of our roof-mount antennas 70 and 98 and the new 70 W, D and M are officially documented, so that the antennas can be installed in the interior of buses. These antenna housings get the number R118

TÜV inspection report in accordance with ECE-R 118 for REEL Antenna Cable (PDF, 90 KB)
TÜV inspection report in accordance with ECE-R 118 for REEL FLEX B118 (PDF, 49 KB)
TÜV inspection report in accordance with ECE-R 118 for REEL PC/ABS (PDF, 49 KB)

Sealed IP protection

The IP protection classes characterize the suitability of electrical equipment for different environmental conditions. The first digit of the so-called. IP code defines the protection against dust, the second against water.

Our Roof antennas meet protection class IP69K:

6 = Dust proof
9K = Protection against water during high pressure / steam jet cleaning, specifically for road vehicles

Our window, desk and magnetic antennas meet the protection class IP67 and IP68:

6 = Dust proof
7 = protection against temporary immersion
8 = Protection against permanent immersion

The new types K98 (and M / N or K70XXD / W or M) will be certified by Q1 2017 to IP 69K.

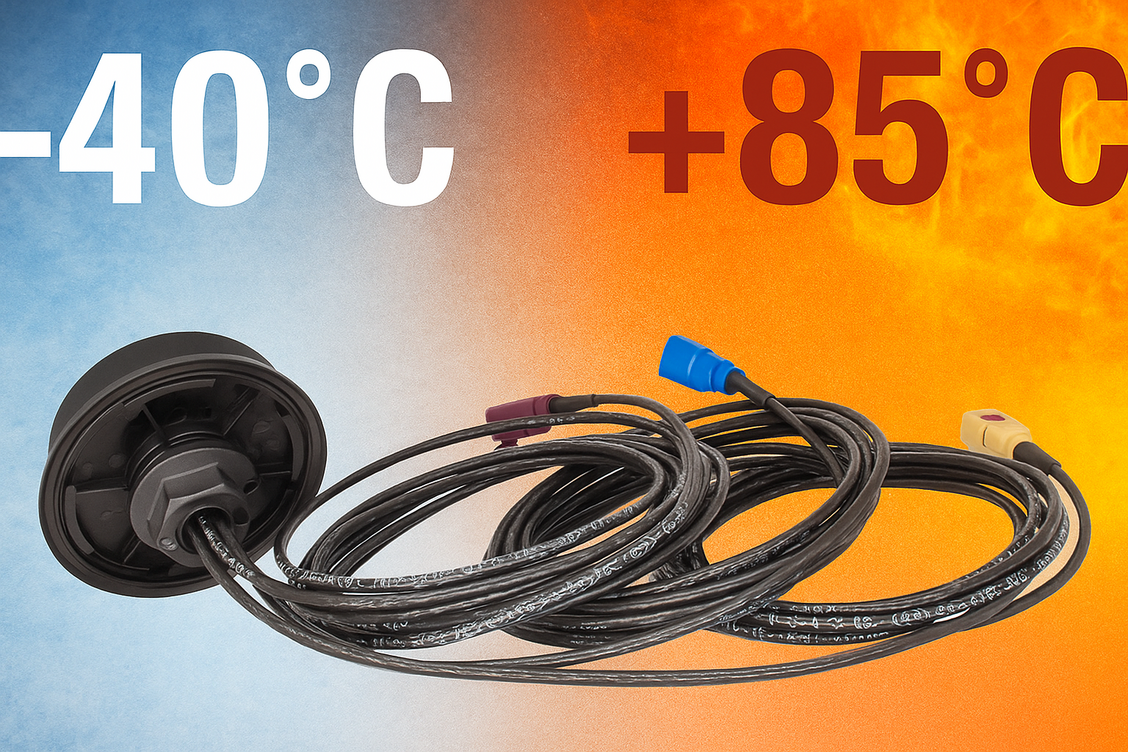

Temperature stability

All products by REEL are designed for a temperature range from -40 ° C to +85 ° C. This is the so-called industrial temperature range.

Only components and materials offering these or larger temperature ranges are selected during development to meet customer requirements. A temperature-stable amplifier is particularly important in navigation antennas for a stable system.

REACH and RoHS Compliance

REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) is the European Chemicals regulation on the registration, evaluation, authorization and restriction of chemicals, in force since 2007.

REEL confirms the REACH and RoHS compliance of all its products:

REEL declaration of conformity to RoHS directive (PDF, 2,2 MB) *
REEL statement to REACH regulation (PDF, 2,2 MB) *

* For security reasons, the original signatures were removed from the certificates. If desired, you can request these from us. Please use our contact form.

Environmental Assessment

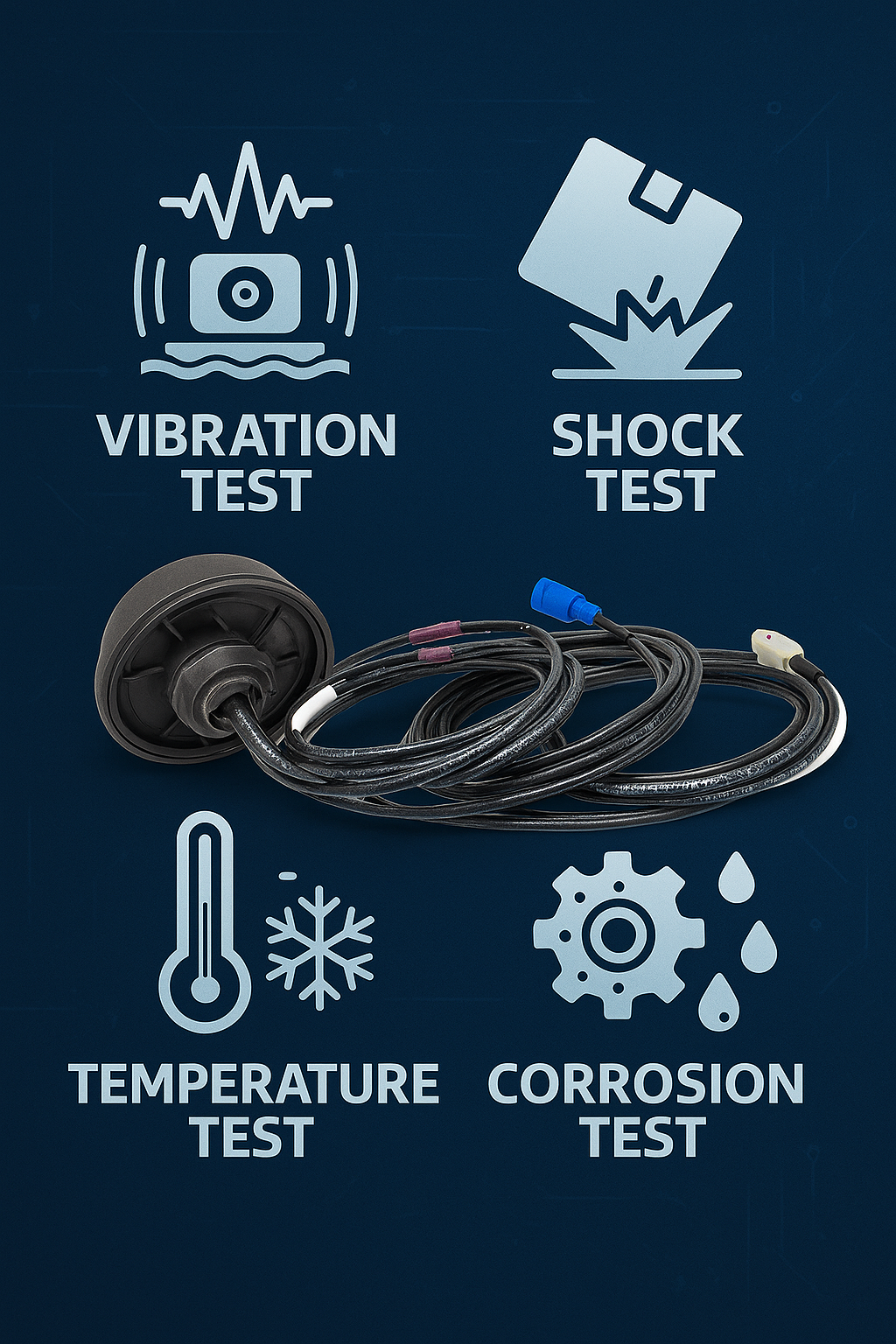

In 2012, we had TÜV SÜD perform extensive testing on almost all product combinations at that time. The test specifications included:

Vibration test in accordance with ISO 16750-3:2006
Shock test in accordance with IEC60068-2-27:2008
Temperature test in accordance with IEC68-2-14Na:2009 und IECE69968-2-2:2007
Temperature shock test in accordance with IEC68-2-14Na:2009
Air-test in accordance with IEC68-2-30Db variant 2:2005
Fluid resistance test in accordance with customer specifications

Reports:

TÜV Environmental Test Report (PDF, 3,3 MB)
Tests for roof mount antennas (PDF, 281 KB)

E13 approval

The 'E' marking is mandatory in motor vehicles for active antennas. With an examination and appropriate authorization, the certifying body declared the electrical conformity with the standards.

Unlike our passive antennas that do not affect transmission and reception signals, navigation antennas such as GPS, GLONASS and Galileo must have the necessary authorization for use in vehicles.

REEL has undergone the testing procedure in Luxembourg at Luxcontrol and the active GPS navigation units of the antennas - "PLANTEC GPS Glonass-Galileo high gain" and "PLANTEC GPS high gain" - feature the latest approval numbers E13 10R - 04 13377 and E13 10R - 04 13509 (GPS high gain).

E13 Approval for planTEc-GPS-Glonass-Galileo high gain (PDF, 2,6 MB)
E13 Approval for planTEc-GPS high gain (PDF, 2,3 MB)
